Benchtop Molecular Printer - Engineered for Cell Biology!
Principle:
The Cyto eNabler™ system is a multifunctional surface patterning platform for dispensing attoliter to femtoliter volumes of biomolecules, nanoparticles and other liquids onto a wide variety of surfaces.
Technical characteristics:
Prints spots and lines from 1 to 60 microns, 100msec printing cycle, 20 nm stage resolution, 25 mm XY travel, multiplexing ability.
Benefits:
Faster and more flexible than conventional technologies; no clogging or misalignment problems, multiplexing ability.

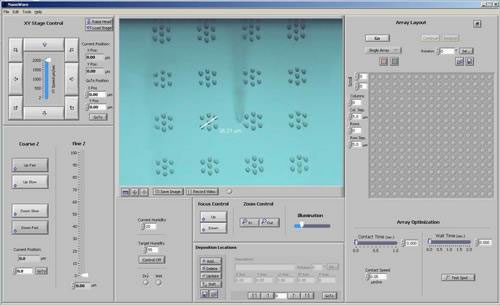

NanoWare CB Graphical User Interface
-
Compatible Materials:
- - Proteins
- - Nucleic Acids
- - Lipids
- - Colloids
- - Quantum Dots
- - UV-curable Adhesives
- - Etchants
- - Catalysts
-
Compatible Surfaces:
- - Silicon
- - Silanes
- - Metals
- - Alkanethiol Monolayers
- - PDMS
- - Hydrogels
- - Nitrocellulose
- - Polystyrene
Technical Characteristics
- Spot size: ultra-micro and sub-micron (femtoliter to attoliter)
- XY Resolution: 20 nm
- XY Travel: 25 mm
- Z Clearance: 45 mm
- Printing cycle: 100ms
- Spot or Line Size: 1-60 um
- Spot Volume Range: attoliter to femtoliter
- Humidity Range: 25-80% RH
- Optical Magnification: 150x – 1000x
-Average Print Cycle: 100 msec
Benefits
- Larger patterns: 62,500 times more XY patterning area than Scanning Probe Lithography systems
- Faster printing: Direct molecular deposition via FEMTO does not rely on diffusion
- Less frustration: Open channel SPT(TM) print cartridges exhibit less clogging than ink-jets or nano-pipettes
- More capabilities: Superior alignment and multiplexing compared to microcontact printing
- Greater flexibility: Make design changes in software without new photomasks or PDMS molds
