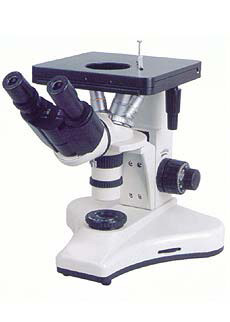

Metal-inv :
Inverted Metallurgical Microscope
Introduction
Metal-inv Metallurgical Microscope is widely used to study PCB boards, LCD displays and metal structure observation and inspection. With the top mounted sample stage and convenient operation, it will be a great choice.Specifications
| Model: Metal-inv | Specifications: |
|---|---|
| Viewing head | Binocular, 45?? inclined, Interpupillary Distance 55-75mm |
| Camera | CMOS 3.0 Megapixels, 1600 x 1280 |
| Objectives | 10X, 100X(S, Oil) 45mm DIN Achromatic, 40X(S) Metallurgical Plan-Scope Achromatic |
| Eyepiece | WF10X, WF12.5X, WF10X with 0.1mm Cross Micrometer, WF10x Micro-ruler: 0.01mm/scale |
| Nosepiece | Backward Triple |
| Total Magnification | 100X to 1250X |
| Stage | Double Layer Mechanical 200 x 180mm with Two Plates (Ø10 and Ø20mm), Moving range X-Y 70 x 50mm |
| Condenser | N/A |
| Focus | Coaxial Course & Fine Focusing Mechanism by Rack & Pinion with Tension Adjustment and Stage Height Limited Knob, Focusing Range 25mm, Fine Division 0.002mm |
| Filter | Blue, Green, Yellow, Ground Glass |
| Illumination | Kohler Illumination, Epi-illminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V 20W Halogen Lamp, 110-220V, Brightness Adjustable |
| Minimum system | Pentium P4, 256MB Memory, 512MB hard disk, 1024 x 768, USB 2.0, Windows XP/2000/Vista |
| USB connection | USB 2.0 |
| Software | Image Capture in BMP and JPG, Live Video on PC Monitor, Functions Include: Previewing, Saving, Measuring, Comparing, Counting and Deleting |
| Weight | 13 kg |
| Dimensions | 42 x 35 x 52 cm |
your basket is EMPTY
Purchasing Area:
Contact us for ordering »| Order Code | Price | Quantity |
|---|---|---|
| Metal-inv | 1695 USD |
|
