The NanoAndMore Tuning Fork Sensor Controller is an electronic device to control the self-oscillation of tuning fork sensors and measure their frequency.
The new NanoAndMore Tuning Fork Sensor Controller is an electronic device to control the self-oscillation of a quartz tuning fork based sensor and to measure its frequency.
The new NanoAndMore Tuning Fork Sensor Controller offers our customers the convenience of a ready to use electronic device to control and to measure the frequency of the NANOSENSORS™ Akiyama-Probe and other self-oscillating quartz tuning fork-based sensors without having to build the whole Akiyama-Probe set-up from scratch.
Quartz Tuning Forks are highly useful for various sensing applications such as Scanning Probe Microscopy (SPM), Atomic Force Microscopy (AFM), viscosity/vacuum measurements, Bio/chemical sensing, etc.
The Tuning Fork Sensor Controller excites the self-oscillation of quartz tuning-fork-based sensors at their resonance frequency. As soon as an external force or an environmental change influences the tuning fork, the self-oscillation frequency changes. By measuring the frequency shift, quantitative information of the analyte is obtained.
AFM topography image of HOPG (left) and scan profile along the dashed line (right)
Control the self-oscillation of the Akiyama-Probe and other quartz tuning-fork-based sensors
Measure the frequency of the Akiyama-Probe and other quartz tuning-fork-based sensors
Optimized for the operation of the Akiyama-Probe in AFM applications

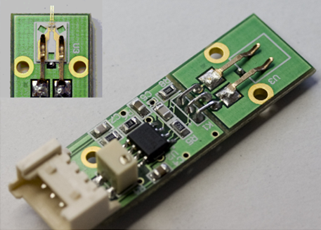

Delivered with one Preamplifier board and one sensor holder ready for operation
Delivered with a set of three tuning forks attached onto a support chip for testing
Ready to use unit out of the box
Self-oscillation frequency range: 10 kHz – 100 kHz
Frequency measurement range: 28 kHz ~ 60 kHz (± 1 kHz variations in different units) Demodulation frequency range: (i) ± 405 Hz (100 mHz resolution, ± 30 Hz variations in different units) (ii) ± 2077 Hz (510 mHz resolution, ± 150 Hz variations in different units)
