AFM Cantilevers by Shape

AFM Cantilevers by Shape (Top View)

Single Beam Cantilevers

Pyrex-Nitride Diving Board AFM Cantilever
Pyrex-Nitride Diving Board
AFM Cantilever

Rectangular AFM cantilevers with various dimensions for specific applications.
(see Interdependence between Geometry and Application)

Typical AFM cantilever mechanical properties ranges:

  • AFM cantilever force constant: 0.06 to 50 N/m
  • AFM cantilever resonance frequency: 1 kHz to 1 MHz
  • AFM cantilever length:  100 to 500 µm
  • AFM cantilever width: 30 to 50 µm
  • AFM cantilever thickness: 0.5 to 8 µm
» Browse all AFM probes with rectangular AFM cantilevers
biotool cell XXL

biotool cell XXL

Extralong 15 um EBD carbon whisker with 25 nm radius on soft cantilever
Coating: Reflex Gold
Tip shape: Cone Shaped, EBD
Cantilever:
F 50 kHz
C 0.1 N/m
L 60 µm

Double Beam Cantilevers

Akiyama-Probe AFM Cantilever
Akiyama-Probe
AFM Cantilever

AFM cantilevers with two beams running parallel to each other.

  • AFM cantilever geometry currently used for Akiyama-Probe AFM cantilevers
  • AFM cantilever length: 310 µm
  • AFM cantilever thickness: 3.7 µm
  • AFM cantilever width: 30 µm each
» NANOSENSORS Akiyama-Probe
Akiyama-Probe

Akiyama-Probe

Novel self-sensing, self-actuating AFM probe for dynamic mode AFM

Coating: None
Tip shape: Visible
Cantilever:
F 50 kHz
C 5 N/m
L 310 µm
Pyrex-Nitride Triangular AFM Cantilever
Pyrex-Nitride
Triangular AFM Cantilever

V-shaped AFM cantilever geometry with two identical legs.

Typical triangular AFM cantilever mechanical properties ranges:

  • AFM cantilever force constant: 0.08 to 0.3 N/m
  • AFM cantilever resonance frequency: 10 to 70 Khz
  • AFM cantilever length: 100 to 200 µm
  • AFM cantilever width: 10 to 30 µm
  • AFM cantilever thickness: 0.5 to 0.6 µm
» Browse all AFM probes with triangular AFM cantilevers
qp-BioT

qp-BioT

uniqprobe™ - uniform quality SPM probe for non-contact/tapping mode/contact mode with 2 different triangular cantilevers

Coating: Reflex Chromium/Gold
Tip shape: Circular symmetric
This probe features 2 cantilevers
F 50 kHz
C 0.3 N/m
L 100 µm
F 20 kHz
C 0.08 N/m
L 200 µm

AFM Cantilevers by Shape (Cross Section)

Trapezoidal Cross Section AFM Cantilever with tip on narrow flank
Trapezoidal Cross Section
AFM Cantilever with tip
on narrow flank

AFM cantilevers with a trapezoidal cross section and the tip on the narrow flank.

» Browse all AFM probes with trapezoidal cross section AFM cantilevers (tip on narrow flank)
SEIHR

SEIHR

Special Tapping Mode AFM Probe
Coating: Reflex Aluminum
Tip shape: Standard
Cantilever:
F 130 kHz
C 15 N/m
L 225 µm

AFM Cantilevers by Material

Arrow™ AFM Cantilever
Arrow™ AFM Cantilever

AFM cantilevers made of single crystal silicon.

  • All components of the AFM probe: the AFM tip, the AFM cantilever and the AFM support are made of monolithic single crystal silicon
  • Silicon is highly doped for static charge dissipation
» Browse all AFM probes with silicon AFM cantilevers
HQ:NSC16/Al BS

HQ:NSC16/Al BS

Tapping Mode AFM Probe with Long Cantilever
Coating: Reflex Aluminum
Tip shape: Rotated
Cantilever:
F 190 kHz
C 45 N/m
L 225 µm
Pyrex-Nitride AFM Cantilevers
Pyrex-Nitride
AFM Cantilevers

AFM cantilevers made of silicon nitride.

  • The AFM tip and the AFM cantilever are made of silicon nitride
  • The AFM cantilever is attached to a silicon or borosilicate glass support chip
» Browse all AFM probes with silicon nitride AFM cantilevers
ST-PNP-CO2H

ST-PNP-CO2H

Chemically modified tips.
Coating: Reflex Gold
Tip shape: Functionalized
This probe features 4 cantilevers
F 17 kHz
C 0.08 N/m
L 200 µm
F 67 kHz
C 0.32 N/m
L 100 µm

AFM Cantilevers by Number of Cantilevers per AFM Probe

AFM Cantilevers by Coating

Rotated AFM Tip
AFM Cantilever with
Aluminum Reflex coating

Aluminum coating on the detector facing side of the AFM cantilevers for enhanced laser reflectance.

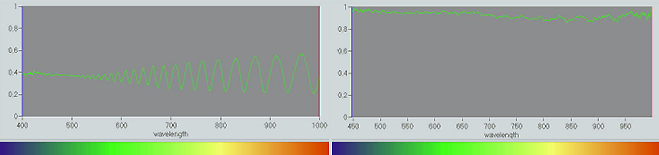

Reflectance of an uncoated AFM cantilever vs reflectance of an aluminum coated AFM cantilever:

Rotated AFM Tip Rotated AFM Tip
Reflectance of an uncoated AFM Cantilever Reflectance of Aluminum coated AFM Cantilever


» Browse all AFM probes with backside aluminum coated AFM cantilevers
160AC-NA

160AC-NA

Standard Tapping Mode AFM Probe with Tip at the Very End of the Cantilever
Coating: Reflex Aluminum
Tip shape: OPUS
Cantilever:
F 300 kHz
C 26 N/m
L 160 µm
AFM Cantilever with Gold Reflex Coating
AFM Cantilever with Gold Reflex Coating

Gold coating on the detector facing side of the AFM cantilevers for enhanced laser reflectance in ambient atmosphere and chemically aggressive environments.

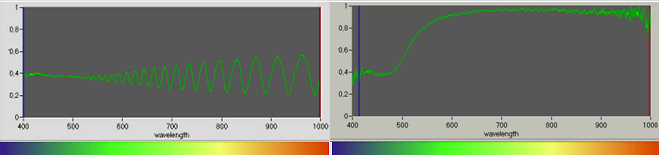

Reflectance of an uncoated AFM cantilever vs reflectance of a gold coated AFM cantilever:

Rotated AFM Tip Rotated AFM Tip
Reflectance of an uncoated AFM Cantilever Reflectance of a Gold coated AFM Cantilever
» Browse all AFM probes with backside gold coated AFM cantilevers
CP-qp-CONT-BSG

CP-qp-CONT-BSG

Colloidal probe, AFM cantilever with round tip like a ball
Coating: Reflex Chromium/Gold
Tip shape: Sphere
Cantilever:
F 30 kHz
C 0.1 N/m
L 125 µm
AFM Cantilever with Overall Gold Coating
AFM Cantilever with
Overall Gold Coating

Gold coating on both sides of the AFM cantilevers.

  • Electrically conductive
  • Often used for tip functionalization
  • Protects the cantilever in chemically aggressive measurement environments
» Browse all AFM probes with overall gold coated AFM cantilevers
240AC-GG

240AC-GG

Gold Coated Force Modulation AFM Probe with Tip at the Very End of the Cantilever
Coating: Gold Overall
Tip shape: OPUS
Cantilever:
F 70 kHz
C 2 N/m
L 240 µm
AFM Cantilever with Electrically Conductive Platinum Coating
AFM Cantilever with
Electrically Conductive
Platinum Coating

Platinum coating on both sides of the AFM cantilevers.

  • Enhances laser reflectance
  • Electrically conductive
  • Used for electric mode measurements
» Browse all AFM probes with platinum coated AFM cantilevers
ElectriMulti75-G

ElectriMulti75-G

Electrical, Force Modulation AFM Probe

Coating: Electrically Conductive
Tip shape: Rotated
Cantilever:
F 75 kHz
C 3 N/m
L 225 µm
AFM Cantilever with Electrically Conductive Platinum/Iridium Coating
AFM Cantilever with
Electrically Conductive
Platinum/Iridium Coating

Platinum/Iridium coating on both sides of the AFM cantilevers.

  • Enhances laser reflectance
  • Electrically conductive
  • Used for electric mode measurements
» Browse all AFM probes with platinum/iridium coated AFM cantilevers
ARROW-NCPt

ARROW-NCPt

Electrical, Tapping Mode AFM Probe with Tip at the Very End of the Cantilever
Coating: Electrically Conductive
Tip shape: Arrow
Cantilever:
F 285 kHz
C 42 N/m
L 160 µm
AFM Cantilever with Conductive Diamond Coating
AFM Cantilever with
Conductive Diamond Coating

High wear resistance and electrically conductive real doped diamond coating on the tip side of the AFM cantilevers.

  • Electrically conductive
  • Used fo electric mode measurements
  • Detector facing side of the AFM cantilevers is coated with aluminum
» Browse all AFM probes with conductive diamond coated AFM cantilevers
DDESP

DDESP

Diamond Coated, Conductive Tapping Mode AFM Probe

Coating: Diamond
Tip shape: Standard
Cantilever:
F 400 kHz
C 80 N/m
L 125 µm


Note: Other coating materials can cover the cantilevers, but as they do not play an active role in the measurement, they have not been listed above.
