AFM Probe Info » AFM Tips: AFM Tip Classification

AFM Tips by Shape

AFM Tips by Shape (macroscopic part, overall shape)

4-sided Pyramidal AFM Tips

PointProbe ® AFM Tip
PointProbe® AFM Tip

AFM tips with a polygon based pyramid shape positioned close to the free end of the AFM cantilever.

  • Macroscopic half-cone angle 20° to 25° viewed along the cantilever axis, 25° to 30° viewed from the side
  • Half-cone angle smaller than 10° at the apex
  • AFM tip height 10-15 µm
  • Front and back pyramid angles of the AFM tip with respect to the vertical differ when the probe is mounted onto the AFM head
» Browse all AFM probes with standard non-rotated AFM tips
NW-SSS-NCL

NW-SSS-NCL

SuperSharp, Tapping Mode AFM Probe with Long Cantilever
Coating: None
Tip shape: Supersharp
Cantilever:*
F 190 kHz
C 48 N/m
L 225 µm
PointProbe ® AFM Tip
PointProbe® AFM Tip

AFM tips with a polygon based pyramid shape positioned close to the free end of the AFM cantilever.

  • Macroscopic half-cone angle 20° to 25° viewed along the cantilever axis, 25° to 30° viewed from the side
  • Half-cone angle smaller than 10° at the apex
  • AFM tip height 10-15 µm
  • Front and back pyramid angles of the AFM tip with respect to the vertical differ when the probe is mounted onto the AFM head
» Browse all AFM probes with standard non-rotated AFM tips
HQ:NSC19/Cr-Au

HQ:NSC19/Cr-Au

Gold Coated Force Modulation AFM Probe
Coating: Gold Overall
Tip shape: Rotated
Cantilever:*
F 65 kHz
C 0.5 N/m
L 125 µm

3-sided Pyramidal AFM Tips

Arrow™ AFM Tip
Arrow™ AFM Tip

Tetrahedral pyramid AFM tips at the end of the cantilever for easy positioning in the area of interest.

  • Front and back pyramid angles of the AFM tip with respect to the vertical are equal when the probe is mounted onto the AFM head
  • AFM tip height 10-15 µm
  • AFM tip radius of curvature below 10 nm
» Browse all AFM probes with AFM tips positionned at the very end of the cantilever
ARROW-NC

ARROW-NC

Tapping Mode AFM Probe with Tip at the Very End of the Cantilever
Coating: None
Tip shape: Arrow
Cantilever:*
F 285 kHz
C 42 N/m
L 160 µm
Advanced TEC™ AFM Tip
Advanced TEC™ AFM Tip

Tetrahedral pyramid AFM tips protruding from the end of the cantilever.

  • Real tip visibility allowing the most accurate positioning
  • AFM tip height 15-20 µm
  • AFM tip radius of curvature below 10 nm
» Browse all AFM probes with AFM tips protruding over the very end of the cantilever
ATEC-CONTAu

ATEC-CONTAu

Gold Coated Contact Mode AFM Probe with REAL Tip Visibility
Coating: Gold Overall
Tip shape: Visible
Cantilever:*
F 15 kHz
C 0.2 N/m
L 450 µm
Arrow™ AFM Tip
OPUS™ AFM Tip

Tetrahedral pyramid AFM tips with a leading pyramid edge at right angle to the cantilever axis for optimized positioning upon the test sample.

  • AFM tip height ~ 14 µm
  • AFM tip radius of curvature of uncoated tips < 7 nm
» Browse all AFM probes with OPUS AFM tips
240AC-NG

240AC-NG

Gold Coated Force Modulation AFM Probe with Tip at the Very End of the Cantilever
Coating: Reflex Gold
Tip shape: OPUS
Cantilever:*
F 70 kHz
C 2 N/m
L 240 µm

4-sided Casted (Hollow) Pyramidal AFM Tips

Silicon Nitride AFM Tip
Silicon Nitride
AFM Tip

AFM tips with a rectangular-based pyramid.

  • When mounted onto the AFM head, only the front AFM tip interacts with the sample surface
  • Overall AFM tip height 12 μm
  • Effective AFM tip height above 800 nm
  • Double tip spacing 4.5 μm
» Browse all AFM probes with rectangular-based pyramidal AFM tips
Q-SiNi

Q-SiNi

Premounted Silicon Nitride AFM Probe, for Quesant/Ambios AFM systems

Coating: Reflex Gold
Tip shape: Pyramid
This probe features 2 cantilevers
F 30 kHz
C 0.27 N/m
L 100 µm
F 10 kHz
C 0.06 N/m
L 200 µm

AFM Tips by Shape (active part of the tip, involved in measurement)

Pyrex-Nitride AFM Tip
Pyrex-Nitride AFM Tip

AFM tips with a square-based pyramid.

  • Oxide sharpened AFM tip
  • AFM tip pyramid height 3.5 µm
  • AFM tip radius of curvature below 10 nm
» Browse all AFM probes with square pyramid AFM tips
PNP-DB

PNP-DB

Silicon Nitride AFM Probe
Coating: Reflex Gold
Tip shape: Pyramid
This probe features 2 cantilevers
F 67 kHz
C 0.48 N/m
L 100 µm
F 17 kHz
C 0.06 N/m
L 200 µm
SuperSharpSilicon™ AFM Tip
SuperSharpSilicon™ AFM Tip

AFM tips with a SuperSharpSilicon apex for high resolution AFM imaging of nanostructures and microroughness.

  • Guaranteed AFM tip radius of curvature below 5 nm
  • Typical AFM tip radius of curvature 2 nm
  • Typical aspect ratio of the last 200 nm 4:1
  • Half cone angle 200 nm from the AFM tip apex below 10°
» Browse all AFM probes with super sharpened pyramidal AFM tips
TESP-SS

TESP-SS

SuperSharp, Tapping Mode AFM Probe

Coating: None
Tip shape: Supersharp
Cantilever:*
F 320 kHz
C 42 N/m
L 125 µm

High Aspect Ratio Spike AFM Tips

High Aspect Ratio AFM Tip
High Aspect Ratio AFM Tip

AFM tips with a high aspect ratio portion allowing measurements of deep trenches.

  • High aspect portion of the AFM tip larger than 2 µm and symmetric when viewed from side as well as along cantilever axis
  • Typical aspect ratio for the last 2 µm of the AFM tip in the order of 7:1 to 12:1
  • Half cone angle of the high aspect ratio portion of the AFM tip typically from 5° down to below 2.8°
» Browse all AFM probes with focused ion beam AFM tips
AR5-NCL

AR5-NCL

High-Aspect-Ratio, Tapping Mode AFM Probe with Long Cantilever
Coating: None
Tip shape: High-Aspect-Ratio
Cantilever:*
F 190 kHz
C 48 N/m
L 225 µm

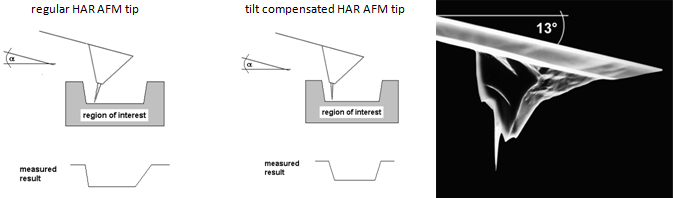

AFM tips with a high aspect ration portion allowing measurements of deep trenches. The tilted high aspect ratio portion compensates the mounting angle within the AFM head. (for AFM instruments with a mounting angle of 13°)

  • Tilted high aspect ratio tip compensates the mounting angle of AFM head
  • Sidewall angles and sidewalls are „not“ distorted
Regular High Aspect Ratio AFM Tip
Regular High Aspect Ratio
AFM Tip
Tilt Compensated High Aspect Ratio AFM Tip
Tilt Compensated
High Aspect Ratio AFM Tip
Tilt Compensated High Aspect Ratio AFM Tip
Tilt Compensated
High Aspect Ratio AFM Tip

» Browse all AFM probes with tilt compensated high aspect ratio AFM tips



AR5T-NCH

AR5T-NCH

High-Aspect-Ratio, Tilt Compensated Tapping Mode AFM Probe
Coating: None
Tip shape: High-Aspect-Ratio
Cantilever:*
F 330 kHz
C 42 N/m
L 125 µm
EBD AFM Tip
EBD AFM Tip

AFM tips with Electron Beam Deposited (EBD) extratips.

  • Extratips with various geometry on the apex of the silicon AFM tip for different applications
  • Sharp EBD AFM tips for high resolution imaging and high aspect ratio EBD AFM tips for deep trench measurements
» Browse all AFM probes with EBD AFM tips
SuperSharp Enhanced-soft

SuperSharp Enhanced-soft

Ultrasharp EBD AFM whisker for high-resolution, soft tapping AFM
Coating: Reflex Aluminum
Tip shape: Cone Shaped, Supersharp, EBD
Cantilever:*
F 75 kHz
C 2.8 N/m
L 225 µm
Plateau AFM Tip
Plateau AFM Tip

AFM tips with a plateau instead of a sharp tip.

  • Plateau formed by Focused Ion Beam (FIB) milling out of a symmetrically etched tip building a rod on top of a conical tip
  • Plateau diameter typically equals 1.8 µm
» Browse all AFM probes with plateau AFM tips
PL2-CONT

PL2-CONT

Contact Mode AFM Probe with Plateau Tip
Coating: None
Tip shape: Plateau
Cantilever:*
F 13 kHz
C 0.2 N/m
L 450 µm
Rounded AFM Tip
Rounded AFM Tip

AFM tips with an intentionally increased and well-defined radius of curvature.

  • AFM tip radius of curvature: 90 nm from the front, 160 nm from the side
» NANOSENSORS Special developments
Special Developments

Special Developments

Not available in the standard scope of products

Coating: various
Tip shape: various

Cantilever: various
Sphere AFM Tip
Sphere AFM Tip

AFM tips with a sphere of well defined size at the end of the AFM tip pyramid or at the end of a tipless AFM cantilever.

  • For applications that require hard contact between tip and sample this AFM tip offers a hemispherical, symmetric and extremely smooth hard tipside coating
  • Different sphere radii available
» Browse all AFM probes with sphere AFM tips
CP-CONT-PM

CP-CONT-PM

Colloidal probe, AFM cantilever with round tip like a ball.
Coating: None
Tip shape: Sphere
Cantilever:*
F 13 kHz
C 0.2 N/m
L 450 µm

AFM Tips by Material

Silicon AFM Tip
Silicon AFM Tip

AFM tips made of single crystal silicon.

  • All components of the AFM probe: the AFM tip, the AFM cantilever and the AFM support chip are made of monolithic single crystal silicon
  • Silicon is highly doped for static charge dissipation
» Browse all AFM probes with silicon AFM tips
160AC-GG

160AC-GG

Gold Coated Tapping Mode AFM Probe with Tip at the Very End of the Cantilever
Coating: Gold Overall
Tip shape: OPUS
Cantilever:*
F 300 kHz
C 26 N/m
L 160 µm
sSilicon Nitride AFM Tip
Silicon Nitride AFM Tip

AFM tips made of silicon nitride.

  • The AFM tip and the AFM cantilever are made of silicon nitride
  • The AFM cantilever is attached to a silicon or a borosilicate glass support chip
» Browse all AFM probes with silicon nitride AFM tips
SiNi

SiNi

Silicon Nitride AFM Probe with 2 Different Cantilevers on Each Side of Chip
Coating: Reflex Gold
Tip shape: Pyramid
This probe features 2 cantilevers
F 30 kHz
C 0.27 N/m
L 100 µm
F 10 kHz
C 0.06 N/m
L 200 µm

AFM Tips by Coating

Gold Coated AFM Tip
Gold Coated AFM Tip

AFM tips with a gold coating.

  • Gold coating covers the entire cantilever as well
  • Electrically conductive
  • Basis for tip functionalization
  • Bio-compatible
» Browse all AFM probes with gold coated AFM tips
HQ:NSC15/Cr-Au

HQ:NSC15/Cr-Au

Gold Coated Tapping Mode AFM Probe
Coating: Gold Overall
Tip shape: Rotated
Cantilever:*
F 325 kHz
C 40 N/m
L 125 µm
Platinum Coated AFM Tip
Platinum Coated AFM Tip

AFM tips with a platinum or a chromium/platinum coating.

  • Platinium coating covers the entire cantilever as well
  • Electrically conductive
  • Used for electric mode AFM measurements
» Browse all AFM probes with platinium coated AFM tips
HQ:NSC15/Pt

HQ:NSC15/Pt

Electrical, Tapping Mode AFM Probe
Coating: Electrically Conductive
Tip shape: Rotated
Cantilever:*
F 325 kHz
C 40 N/m
L 125 µm
Platinum/Iridium Coated AFM Tip
Platinum/Iridium Coated
AFM Tip

AFM tips with a platinum/iridium coating.

  • Platinium/Iridium coating covers the entire cantilever as well
  • Electrically conductive
  • Used for electric mode AFM measurements
» Browse all AFM probes with platinum/iridium coated AFM tips
ARROW-EFM

ARROW-EFM

Electrical, Force Modulation AFM Probe with Tip at the Very End of the Cantilever
Coating: Electrically Conductive
Tip shape: Arrow
Cantilever:*
F 75 kHz
C 2.8 N/m
L 240 µm
Diamond Coated AFM Tip
Diamond Coated AFM Tip

AFM tips with a real diamond coating for unsurpassed wear resistance.

  • Diamond coating covers the tip side of the cantilever as well
  • Ensures an even higher durability than DLC coating
» Browse all AFM probes with real diamond coated AFM tips
DT-FMR

DT-FMR

Diamond Coated Force Modulation AFM Probe
Coating: Diamond
Tip shape: Standard
Cantilever:*
F 105 kHz
C 6.2 N/m
L 225 µm
Conductive Diamond Coated AFM Tip
Conductive Diamond
Coated AFM Tip

AFM tips with a doped diamond coating.

  • Conductive Diamond coating covers the tip side of the cantilever as well
  • Provides high wear resistance for electric mode applications
» Browse all AFM probes with conductive diamond coated AFM tips
CDT-NCHR

CDT-NCHR

Diamond Coated, Conductive Tapping Mode AFM Probe
Coating: Diamond,
Conductive Diamond
Tip shape: Standard
Cantilever:*
F 400 kHz
C 80 N/m
L 125 µm
Cobalt Alloy Coated AFM Tip
Cobalt Alloy Coated
AFM Tip

AFM tips with a cobalt alloy magnetic coating for Magnetic Force Microscopy (MFM) measurements.

  • Cobalt Alloy coating covers the tip side of the cantilever as well
  • Several different variations with different magnetic momentum and coercivity available
» Browse all AFM probes with magnetic AFM tips
SSS-MFMR

SSS-MFMR

SuperSharp, Hard Magnetic, Low Momentum AFM Probe
Coating: Magnetic
Tip shape: Supersharp
Cantilever:*
F 75 kHz
C 2.8 N/m
L 225 µm
Silicon Nitride Coated AFM Tip
Silicon Nitride Coated
AFM Tip

AFM tips with a thin silicon nitride coating.

  • Silicon Nitride coating covers the entire cantilever as well
  • Improved wear resistance
  • Bio-compatible
» NANOSENSORS Special Developments
Special Developments

Special Developments

Not available in the standard scope of products

Coating: various
Tip shape: various

Cantilever: various
Silicide Coated AFM Tip
Silicide Coated AFM Tip

AFM tips with a silicide coating.

  • Silicide coating covers the entire cantilever as well
  • Electrically conductive
  • Bio-compatible

» Browse all AFM probes with silicide coated AFM tips

PtSi-FM

PtSi-FM

Electrical, Force Modulation AFM Probes
Coating: Platinum Silicide Overall
Tip shape: Standard
Cantilever:*
F 75 kHz
C 2.8 N/m
L 225 µm
