How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

Park Systems AFM instruments require the probe to be mounted upon a specially designed metal plate which is clipped magnetically to the AFM probe hand. For loading un-mounted probes, as provided by NanoAndMore, the probes must be placed into the Clip Type Chip Carrier using the corresponding Cantilever Exchanger.

The Clip Type Chip Carrier is a metal plate, with a small pocket for the AFM probe and a clamping spring attached to the plate. The Cantilever Exchanger is a tools that is needed to load probes into the carrier. If you do not have these tools, please contact your local Park Systems representative.

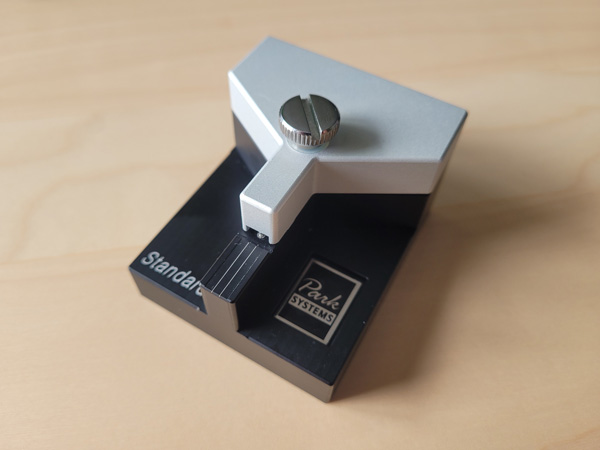

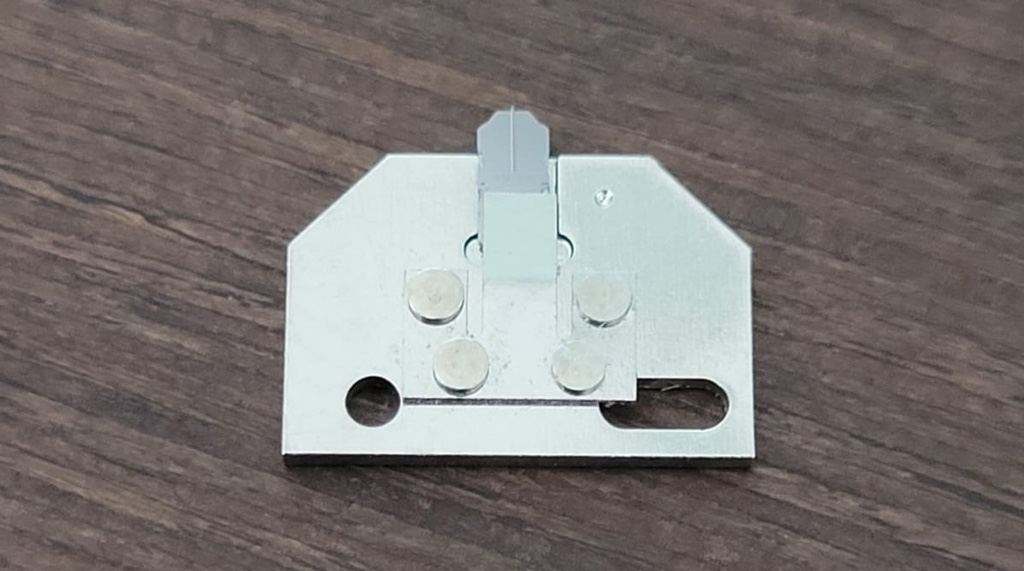

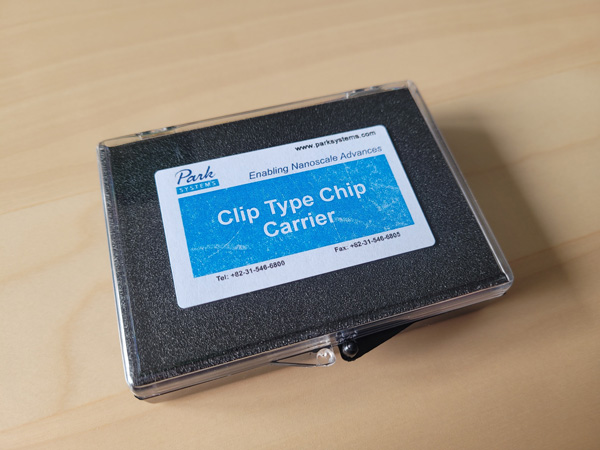

Fig.1 Clip Type Chip Carrier BoxFig.2 Clip Type Chip CarrierFig.3 Cantilever Exchanger

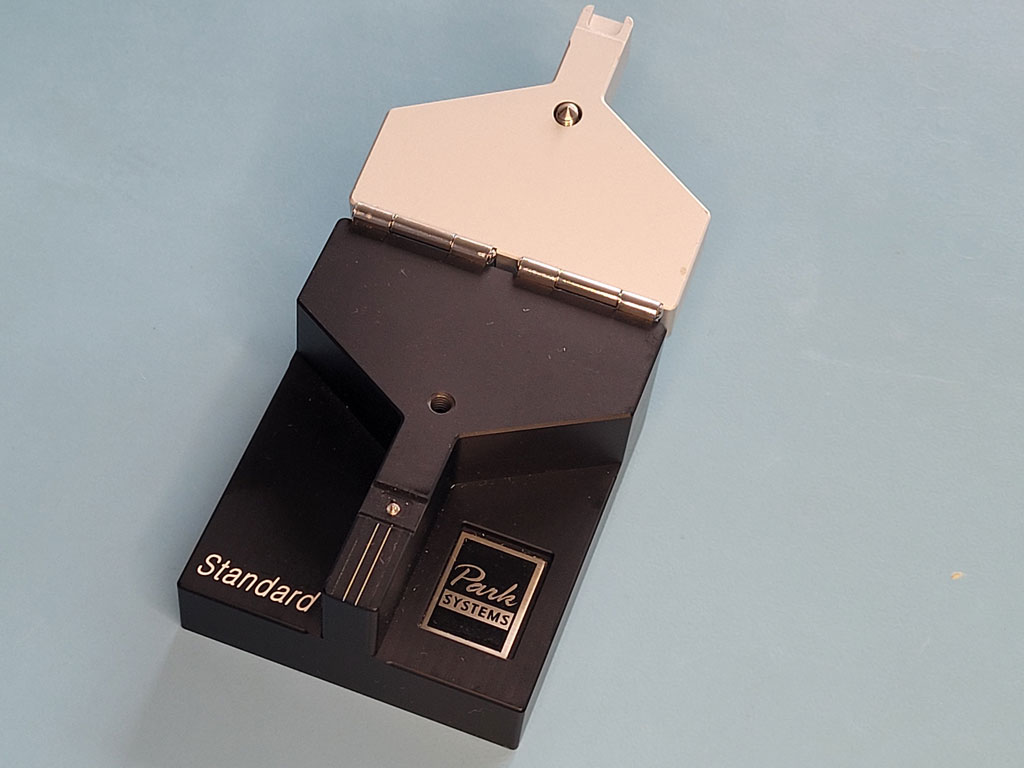

Step 1 - Open the Cantilever Exchanger

Open the Cantilever Exchanger by loosening the screw and flipping the lid.

Step 1 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

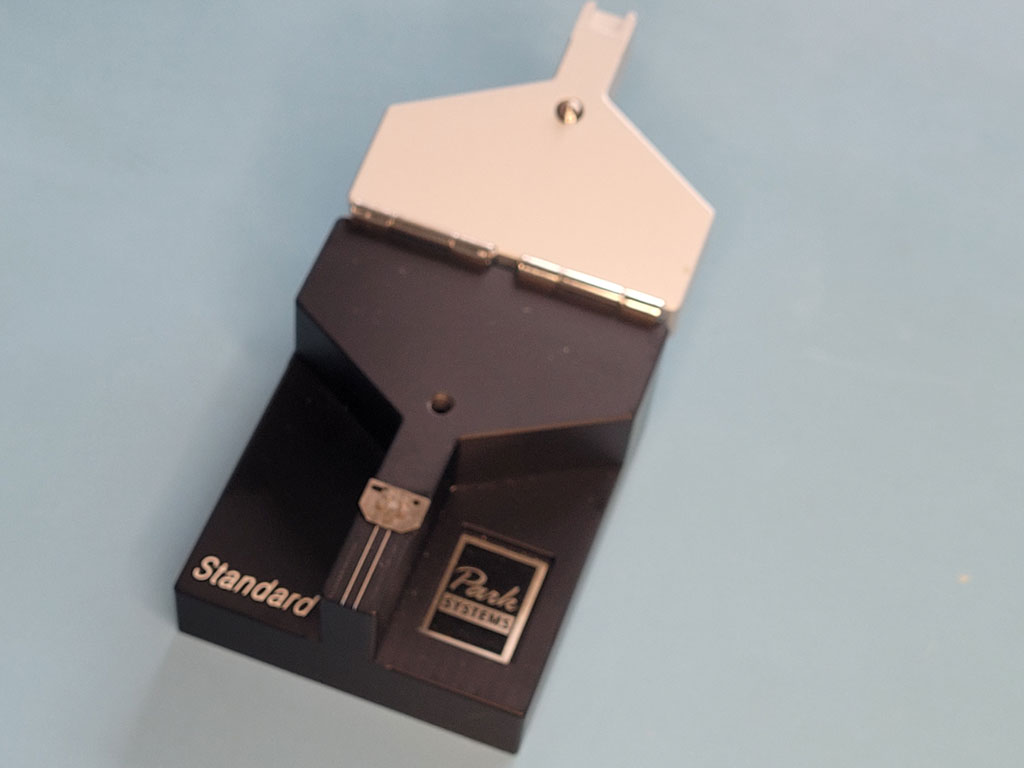

Step 2 - Place the Clip Type Chip Carrier in the pocked of the Cantilever Exchanger

When placing the Clip Type Chip Carrier in the pocked of the Cantilever Exchanger make sure the two are well aligned, as shown on the image.

Step 2 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

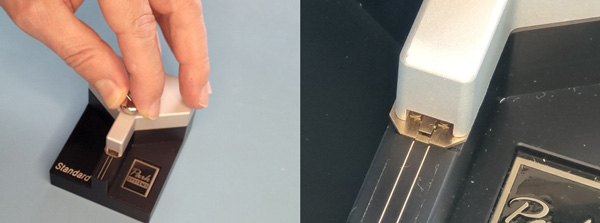

Step 3 - Close the lid of the Cantilever Exchanger

Close the lid and tighten the screw. The lid will press down on the carrier, which will open the spring for probe loading.

Step 3 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

Step 4 - Prepare for loading the probe in the Cantilever Exchanger

It is important to observe ESD safety precautions in the next steps, to minimize the risk of tip damage. This can be done using ESD mats, wristbands and tweezers.

Attention! The sharp tip of an AFM probe is susceptible to damage by electrostatic discharge (ESD). Electric fields near the probe chip may lead to field evaporation which can blunt the tip apex of the probe tip. Therefore, appropriate precautions to avoid tip damage due to electrostatic discharge are recommended when handling the probes.
Step 4 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

Step 5 - Place the probe onto the loading area

Pick up the probe using sharp tweezers and place it onto the loading area of the Cantilever Exchanger (marked by white lines).

Step 5 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

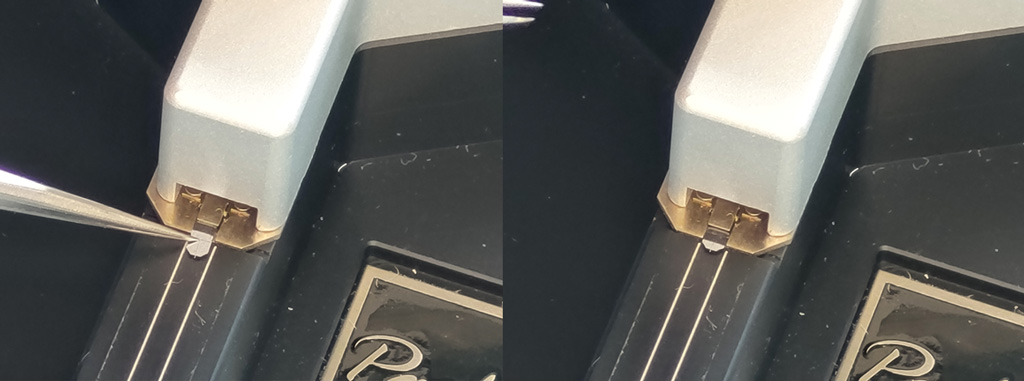

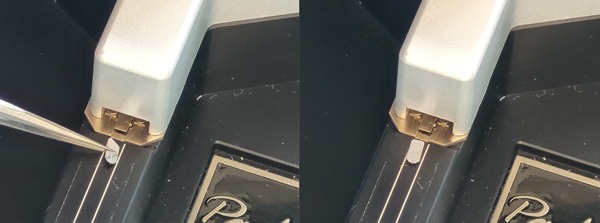

Step 6 - Slide the probe into the open Clip Type Chip Carrier

Slide the probe gently, into the open Clip Type Chip Carrier as far as the pocket allows. Take care not to touch the cantilever side with the tweezers – the cantilever will break off if touched.

Step 6 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

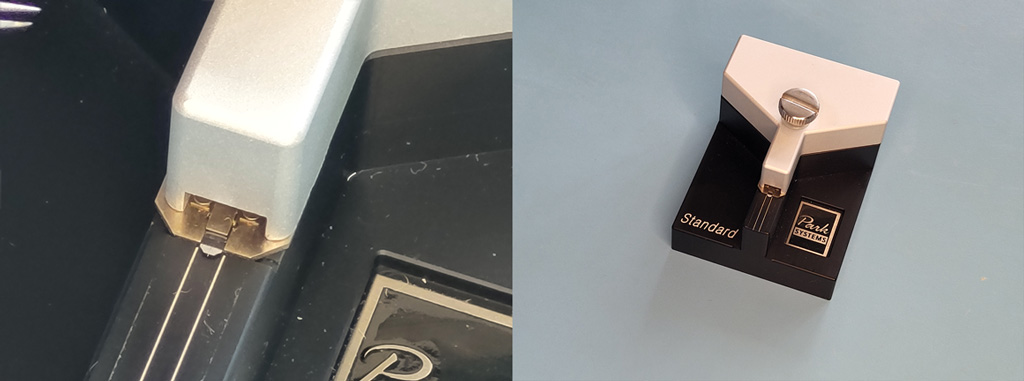

Step 7 - Loosen the screw on the Cantilever Exchanger

Loosening the screw on the Cantilever Exchanger will release the spring and clamp the probe in the carrier.

Step 7 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

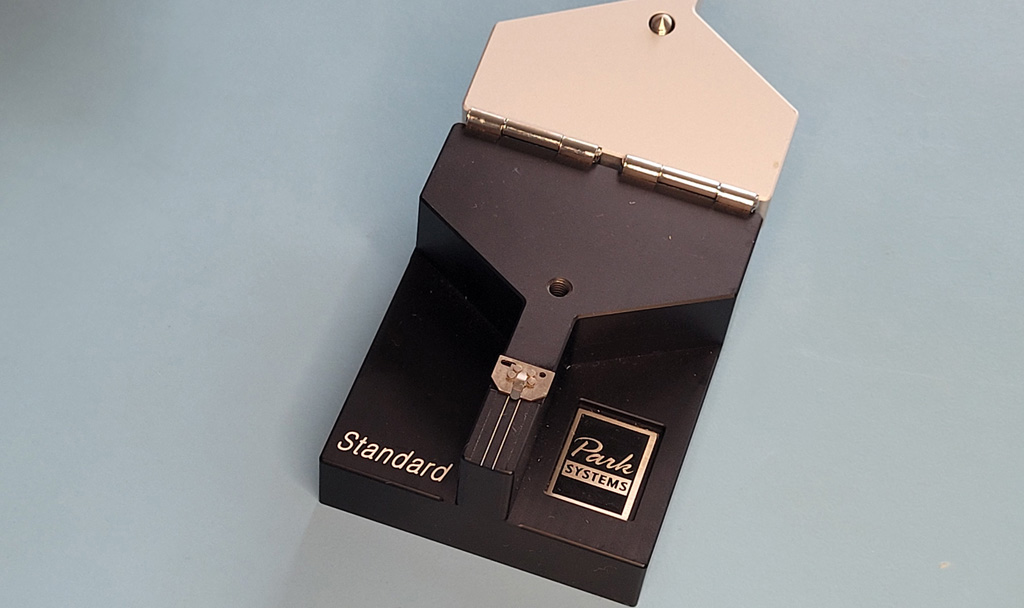

Step 8 - Open the lid of the Cantilever Exchanger

Open the lid and take out the mounted probe.

Step 8 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

Step 9 - Load the mounted probe in your Park Systems AFM

Place the carrier with the mounted probe into the probe hand of your Park Systems AFM.

Step 9 - How to use the Park Systems Clip Type Chip Carrier for unmounted probes.

Step 10 - Proceed according to your system's manual

Proceed with the remainder of the setup/calibration of your experiment, as per your Park Systems instruction manual.

Watch a Video showing the mounting of standard AFM probes into the Park Clip Type Chip Carrier

The NANOSENSORS™ video below with Thomas Sulzbach explains which tools are needed and a hands-on section shows how these tools are used for placing conventional AFM probes into the Clip Type Chip Carrier clamping securely the probe.
