AFM Probes »

TL-FM

Order Code / Price*

Quantity

TL-FM-10 Box of 10 AFM Probes

351 351.00 EUR

Volume Discount Available [?]

TL-FM-20 Box of 20 AFM Probes

628 628.00 EUR

Your volume discount is 74.00 EUR or 10.50%

TL-FM-50 Box of 50 AFM Probes

1385 1385.00 EUR

Your volume discount is 370.00 EUR or 21.10%

Price shown as ex-works and subjected to shipping charges, insurance, local VAT and custom duties respectively where applicable

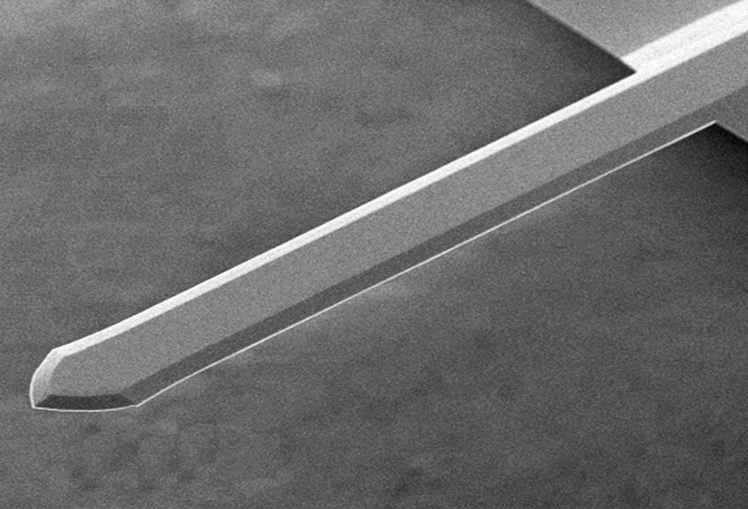

3D view SEM image of tipless AFM cantilever

TL-FM

Name: TL-FM-10 Tipless Force Modulation AFM Cantilever
Brand: NANOSENSORS
SKU: TL-FM-10
Price: 351 EUR
Availability: InStock

Tipless Force Modulation AFM Cantilever

Coating: none
AFM tip shape: Tipless

AFM Cantilever

F 75 kHz

C 2.8 N/m

L 225 µm

*nominal values

Applications

How to use standard AFM Probes on Park AFM Systems

NANOSENSORS™ TL-FM AFM probes are designed for special applications where no AFM tip at the AFM cantilever is needed.

The AFM probe offers unique features:

no AFM tip
highly doped silicon to dissipate static charge
chemically inert
high mechanical Q-factor for high sensitivity
precise alignment of the AFM cantilever position (within +/- 2 µm) when used with the Alignment Chip
compatible with PointProbe® Plus XY-Alignment Series

This AFM probe features alignment grooves on the back side of the holder chip.

Uncoated

AFM Tip:

Shape: Tipless

AFM Cantilever:

Shape: Beam

Force Constant: 2.8 N/m (0.5 - 9.5 N/m)*

Resonance Frequency: 75 kHz (45 - 115 kHz)*

Length: 225 µm (215 - 235 µm)*

Width: 28 µm (20 - 35 µm)*

Thickness: 3 µm ( 2 - 4 µm)*

* guaranteed range
