HQ:NSC36/No Al

Order Code / Price*

Quantity

HQ:NSC36/No Al-15 Box of 15 AFM Probes

350 350.00 EUR

Volume Discount Available [?]

HQ:NSC36/No Al-50 Box of 50 AFM Probes

1000 1000.00 EUR

Your volume discount is 166.67 EUR or 14.30%

HQ:NSC36/No Al-100 Box of 100 AFM Probes

1730 1730.00 EUR

Your volume discount is 603.33 EUR or 25.90%

HQ:NSC36/No Al-200 Box of 200 AFM Probes

3200 3200.00 EUR

Your volume discount is 1466.67 EUR or 31.40%

HQ:NSC36/No Al-400 Box of 400 AFM Probes

5300 5300.00 EUR

Your volume discount is 4033.33 EUR or 43.20%

Price shown as ex-works and subjected to shipping charges, insurance, local VAT and custom duties respectively where applicable

AFM probe with 3 different soft tapping mode AFM cantilevers by MikroMasch

AFM tip of MikroMasch AFM probe with 3 different soft tapping mode AFM cantilevers

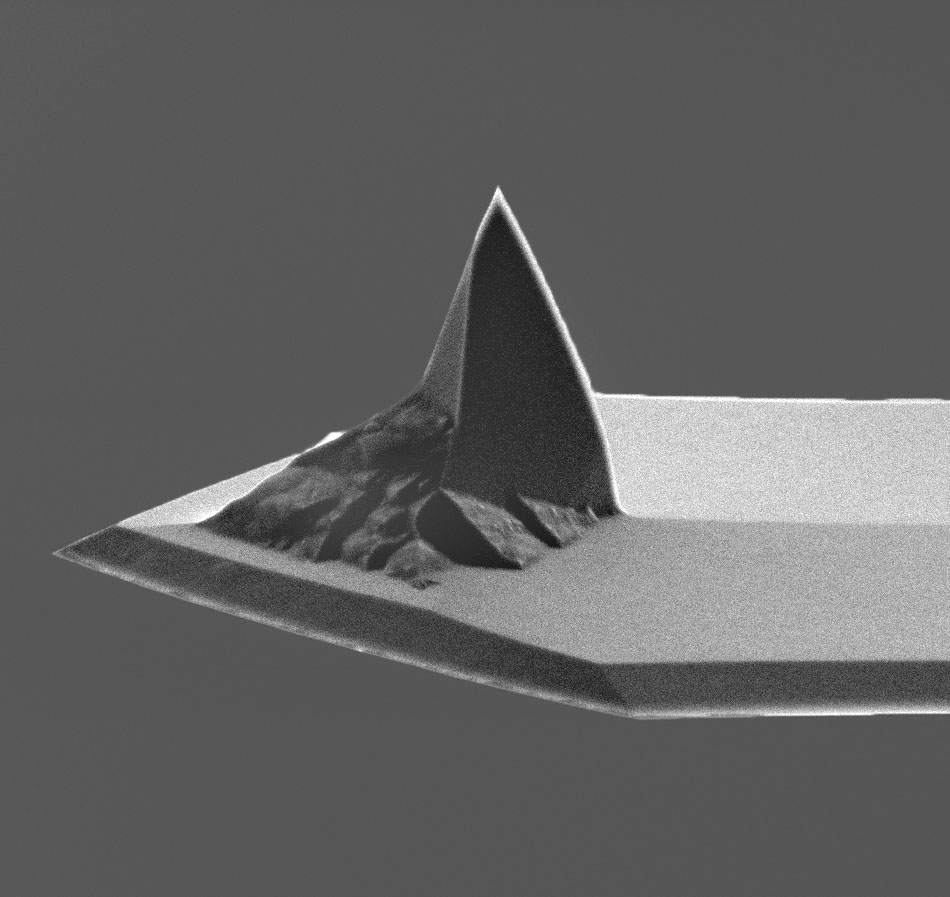

SEM image of MikroMasch general purpose AFM probe tip close-up

Schematic of three-lever NSC series MikroMasch AFM Probe

HQ:NSC36/No Al

AFM Probe with 3 Different Force Modulation Mode AFM Cantilevers

Manufacturer: MikroMasch

Coating: none
AFM tip shape: Rotated

This probe features 3 cantilevers

F 90 kHz

C 1 N/m

L 110 µm

F 130 kHz

C 2 N/m

L 90 µm

F 65 kHz

C 0.6 N/m

L 130 µm

*nominal values

Applications

How to optimize AFM scan parameters

How to use standard AFM Probes on Park AFM Systems

AFM probes of the 36 series have three different Force modulation mode AFM cantilevers on one side of the holder chip. They can be used in various applications.

The monolithic silicon HQ AFM probes offer high consistency of the AFM tip radius, cantilever reflectivity and quality factor.

Uncoated

AFM Tip:

Shape: Rotated

Height: 15 µm (12 - 18 µm)*

Full Cone Angle: 40°

Radius: < 8 nm

3 AFM Cantilevers:

Cantilever A

Shape: Beam

Force Constant: 1 N/m (0.1 - 4.6 N/m)*

Resonance Frequency: 90 kHz (30 - 160 kHz)*

Length: 110 µm (105 - 115 µm)*

Width: 32.5 µm (29.5 - 35.5 µm)*

Thickness: 1 µm ( 0.5 - 1.5 µm)*

Cantilever B

Shape: Beam

Force Constant: 2 N/m (0.2 - 9 N/m)*

Resonance Frequency: 130 kHz (45 - 240 kHz)*

Length: 90 µm (85 - 95 µm)*

Width: 32.5 µm (29.5 - 35.5 µm)*

Thickness: 1 µm ( 0.5 - 1.5 µm)*

Cantilever C

Shape: Beam

Force Constant: 0.6 N/m (0.06 - 2.7 N/m)*

Resonance Frequency: 65 kHz (25 - 115 kHz)*

Length: 130 µm (125 - 135 µm)*

Width: 32.5 µm (29.5 - 35.5 µm)*

Thickness: 1 µm ( 0.5 - 1.5 µm)*

* typical range
