AFM Probes » ARROW-NCR

 Order
 Request a quote (RFQ)
Order Code / Price*
Quantity
ARROW-NCR-10 Box of 10 AFM Probes
297.00 USD
ARROW-NCR-50 Box of 50 AFM Probes
1 177.00 USD
Your volume discount is 308.00 USD or 20.70%
ARROW-NCR-W Box of 380 AFM Probes
6 050.00 USD
Your volume discount is 5 236.00 USD or 46.40%
Product availability: On stock

ARROW-NCR

Tapping Mode AFM Probe with Tip at the Very End of the Cantilever

Manufacturer: NanoWorld

Coating: Reflex Aluminum
AFM tip shape: Arrow
AFM Cantilever
F 285 kHz
C 42 N/m
L 160 µm
*nominal values

Applications

How to optimize AFM scan parameters gear icon

Optimized positioning through maximized tip visibility

NanoWorld Arrow™ NC AFM probes are designed for non-contact or tapping™ mode imaging. This AFM probe type combines high operation stability with outstanding sensitivity and fast scanning ability.

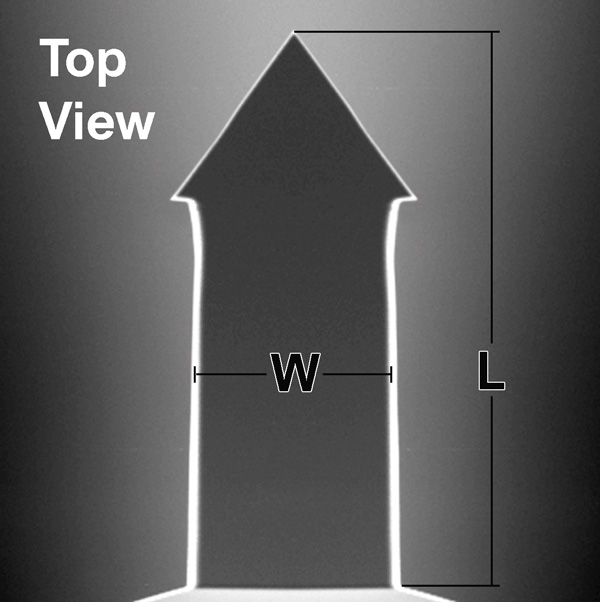

All SPM and AFM probes of the Arrow™ series are made from monolithic silicon which is highly doped to dissipate static charge. They are chemically inert and offer a high mechanical Q-factor for high sensitivity. The AFM probes feature a rectangular AFM cantilever with a triangular free end and a tetrahedral AFM tip.

Additionally, this probe offers an excellent tip radius of curvature.

The unique Arrow™ shape with the tip position at the very end of the cantilever allows easy positioning of the AFM tip on the area of interest.

Aluminum Reflex Coating

The aluminum reflex coating consists of a 30 nm thick aluminum layer deposited on the detector side of the cantilever which enhances the reflectance of the laser beam by a factor of 2.5. Furthermore it prevents light from interfering within the cantilever.

AFM Tip:


  • AFM Cantilever:

  • Beam
  • 42 N/m (27 - 80 N/m)*
  • 285 kHz (240 - 380 kHz)*
  • 160 µm (155 - 165 µm)*
  • 45 µm (40 - 50 µm)*
  • 4.6 µm ( 4.1 - 5.1 µm)*
  • * typical range
