Conductive AFM Probes

best of the best

CDT-FMR

Diamond Coated, Conductive Force Modulation AFM Probe

Coating: Diamond,Conductive Diamond
Tip Shape: Standard

Cantilever:

F 105 kHz

C 6.2 N/m

L 225 µm

best of the best

PPP-EFM

Electrical, Force Modulation AFM Probe

Coating: Electrically Conductive
Tip Shape: Standard

Cantilever:

F 75 kHz

C 2.8 N/m

L 225 µm

ATEC-EFM

Electrical, Force Modulation AFM Probe with REAL Tip Visibility

Coating: Electrically Conductive
Tip Shape: Visible

Cantilever:

F 85 kHz

C 2.8 N/m

L 240 µm

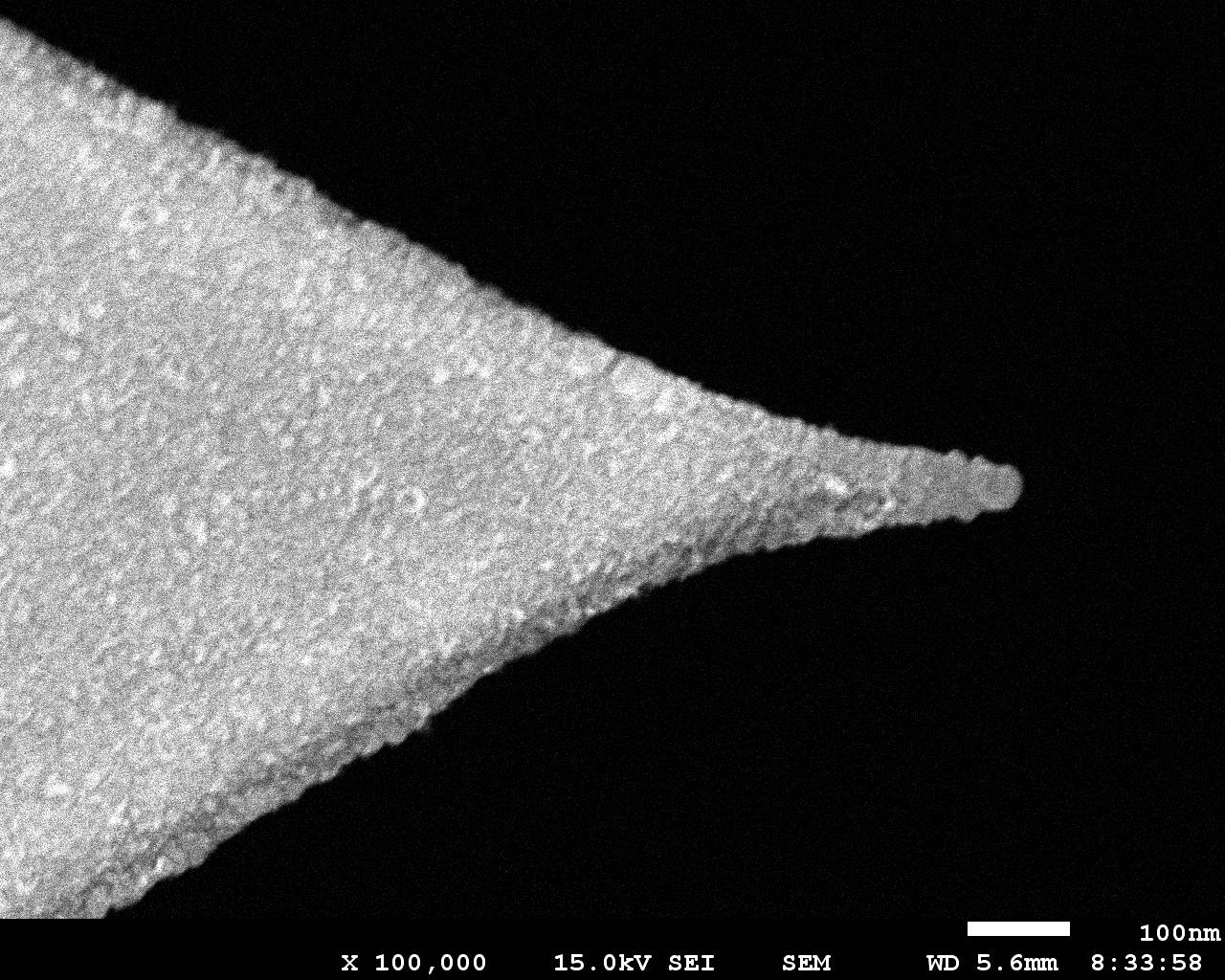

PtSi-CONT

Electrical, Contact Mode AFM Probes

Coating: Platinum Silicide Overall
Tip Shape: Standard

Cantilever:

F 13 kHz

C 0.2 N/m

L 450 µm

Special Developments

Download a List of Non-Standard, Special AFM Probes and More

Coating: various
Tip Shape: various

the industry standard

NW-CDT-FMR

Diamond Coated, Conductive Force Modulation AFM Probe

Coating: Diamond,Conductive Diamond
Tip Shape: Standard

Cantilever:

F 105 kHz

C 6.2 N/m

L 225 µm

ARROW-EFM

Electrical, Force Modulation AFM Probe with Tip at the Very End of the Cantilever

Coating: Electrically Conductive
Tip Shape: Arrow

Cantilever:

F 75 kHz

C 2.8 N/m

L 240 µm

the industry standard

EFM

Electrical, Force Modulation AFM Probe

Coating: Electrically Conductive
Tip Shape: Standard

Cantilever:

F 75 kHz

C 2.8 N/m

L 225 µm

top value

HQ:NSC18/Pt

Electrical, Force Modulation AFM Probe

Coating: Electrically Conductive
Tip Shape: Rotated

Cantilever:

F 75 kHz

C 2.8 N/m

L 225 µm

top value

240AC-PP

Electrical, Force Modulation AFM Probe with Tip at the Very End of the Cantilever

Coating: Electrically Conductive
Tip Shape: OPUS

Cantilever:

F 70 kHz

C 2 N/m

L 240 µm

best bang for your buck

ElectriMulti75-G

Electrical, Force Modulation AFM Probe

Coating: Electrically Conductive
Tip Shape: Rotated

Cantilever:

F 75 kHz

C 3 N/m

L 225 µm

best of the best

PtSi-FM

Electrical, Force Modulation AFM Probes

Coating: Platinum Silicide Overall
Tip Shape: Standard

Cantilever:

F 75 kHz

C 2.8 N/m

L 225 µm

CDT-CONTR

Diamond Coated, Conductive Contact Mode AFM Probe

Coating: Diamond,Conductive Diamond
Tip Shape: Standard

Cantilever:

F 20 kHz

C 0.5 N/m

L 450 µm

DDESP

Diamond Coated, Conductive Tapping Mode AFM Probe

Coating: Diamond
Tip Shape: Standard

Cantilever:

F 400 kHz

C 80 N/m

L 125 µm

DDESP-FM

Diamond Coated, Conductive Force Modulation AFM Probe

Coating: Diamond
Tip Shape: Standard

Cantilever:

F 105 kHz

C 6.2 N/m

L 225 µm

OSCM-PT

Electrical, Force Modulation AFM Probe with Tip at the Very End of the Cantilever

Coating: Electrically Conductive
Tip Shape: OPUS

Cantilever:

F 70 kHz

C 2 N/m

L 240 µm

HQ:NSC35/Pt

AFM Probe with 3 Different Electrical, Tapping Mode Cantilevers

Coating: Electrically Conductive
Tip Shape: Rotated

Cantilevers: 3

F 205 kHz

C 8.9 N/m

L 110 µm

F 300 kHz

C 16 N/m

L 90 µm

F 150 kHz

C 5.4 N/m

L 130 µm

best bang for your buck

All-In-One-DD

Diamond Coated, Conductive AFM Probe with 4 Different Cantilevers

Coating: Conductive Diamond
Tip Shape: Rotated

Cantilevers: 4

F 19 kHz

C 0.5 N/m

L 500 µm

F 110 kHz

C 6.5 N/m

L 210 µm

F 200 kHz

C 18 N/m

L 150 µm

F 450 kHz

C 100 N/m

L 100 µm

PtSi-NCH

Electrical, Tapping Mode AFM Probes

Coating: Platinum Silicide Overall
Tip Shape: Standard

Cantilever:

F 330 kHz

C 42 N/m

L 125 µm

CDT-NCHR

Diamond Coated, Conductive Tapping Mode AFM Probe

Coating: Diamond,Conductive Diamond
Tip Shape: Standard

Cantilever:

F 400 kHz

C 80 N/m

L 125 µm
