Tipless AFM Cantilevers and Cantilever Arrays

best of the best

TL-CONT

Tipless Contact Mode AFM Cantilever

Coating: none
Tip Shape: Tipless

AFM Cantilever:

F

13 kHz

C

0.2 N/m

L

450 µm

TL-FM

Tipless Force Modulation AFM Cantilever

Coating: none
Tip Shape: Tipless

AFM Cantilever:

F

75 kHz

C

2.8 N/m

L

225 µm

TL-NCH

Tipless Tapping Mode AFM Cantilever

Coating: none
Tip Shape: Tipless

AFM Cantilever:

F

330 kHz

C

42 N/m

L

125 µm

TL-NCL

Tipless, Long Tapping Mode AFM Cantilever

Coating: none
Tip Shape: Tipless

AFM Cantilever:

F

190 kHz

C

48 N/m

L

225 µm

the industry standard

ARROW-TL1

Tipless AFM Cantilever for Special Applications

Coating: none
Tip Shape: Tipless

AFM Cantilever:

F

6 kHz

C

0.03 N/m

L

500 µm

PNP-TR-TL

Tipless Silicon Nitride AFM Cantilever

Coating: Reflex Gold
Tip Shape: Tipless

AFM Cantilevers: multiple

F

67 kHz

17 kHz

C

0.32 N/m

0.08 N/m

L

100 µm

200 µm

ARROW-TL2

Tipless AFM Cantilever Array for Special Applications

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 2

1

F

6 kHz

C

0.03 N/m

L

500 µm

ARROW-TL8

Tipless AFM Cantilever Array for Special Applications

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 8

1

F

6 kHz

C

0.03 N/m

L

500 µm

HQ:NSC35/tipless/No Al

Tipless AFM Probe with 3 Different Tapping Mode AFM Cantilevers

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

205 kHz

300 kHz

150 kHz

C

8.9 N/m

16 N/m

5.4 N/m

L

110 µm

90 µm

130 µm

HQ:NSC36/tipless/No Al

Tipless AFM Probe with 3 Different Force Modulation AFM Cantilevers

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

90 kHz

130 kHz

65 kHz

C

1 N/m

2 N/m

0.6 N/m

L

110 µm

90 µm

130 µm

HQ:CSC37/tipless/No Al

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

40 kHz

20 kHz

30 kHz

C

0.8 N/m

0.3 N/m

0.4 N/m

L

250 µm

350 µm

300 µm

top value

HQ:CSC38/tipless/No Al

Tipless AFM Probe with 3 Different Contact Mode AFM Cantilevers

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

20 kHz

10 kHz

14 kHz

C

0.09 N/m

0.03 N/m

0.05 N/m

L

250 µm

350 µm

300 µm

best bang for your buck

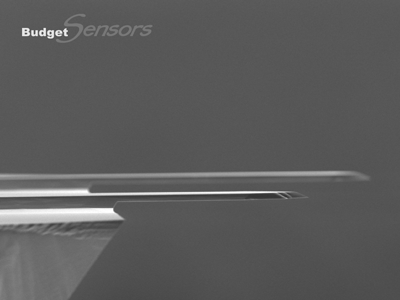

All-In-One-Tipless

Tipless AFM Probe with 4 Different AFM Cantilevers for Various Applications

Coating: none
Tip Shape: Tipless

AFM Cantilevers: 4

1

2

3

4

F

15 kHz

80 kHz

150 kHz

350 kHz

C

0.2 N/m

2.7 N/m

7.4 N/m

40 N/m

L

500 µm

210 µm

150 µm

100 µm

ARROW-TL1Au

Tipless, Gold Coated AFM Cantilever Array for Special Applications

Coating: Gold on Sample Facing Side
Tip Shape: Tipless

AFM Cantilever:

F

6 kHz

C

0.03 N/m

L

500 µm

ARROW-TL2Au

Tipless, Gold Coated AFM Cantilever Array for Special Applications

Coating: Gold on Sample Facing Side
Tip Shape: Tipless

AFM Cantilevers: 2

1

F

6 kHz

C

0.03 N/m

L

500 µm

ARROW-TL8Au

Tipless, Gold Coated AFM Cantilever Array for Special Applications

Coating: Gold on Sample Facing Side
Tip Shape: Tipless

AFM Cantilevers: 8

1

F

6 kHz

C

0.03 N/m

L

500 µm

PNP-TR-TL-Au

Tipless, Gold Coated Silicon Nitride AFM Cantilever

Coating: Gold Overall
Tip Shape: Tipless

AFM Cantilevers: multiple

F

67 kHz

17 kHz

C

0.32 N/m

0.08 N/m

L

100 µm

200 µm

HQ:NSC35/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Tapping Mode AFM Cantilevers

Coating: Gold Overall
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

205 kHz

300 kHz

150 kHz

C

8.9 N/m

16 N/m

5.4 N/m

L

110 µm

90 µm

130 µm

HQ:NSC36/tipless/Cr-Au

Tipless AFM Probe with 3 Different Gold Coated Force Modulation AFM Cantilevers

Coating: Gold Overall
Tip Shape: Tipless

AFM Cantilevers: 3

1

2

3

F

90 kHz

130 kHz

65 kHz

C

1 N/m

2 N/m

0.6 N/m

L

110 µm

90 µm

130 µm

Mix and Match Box

Mixed box: up to 400 MikroMasch AFM probes

Coating: various
Tip Shape: various
