Fluid Tapping AFM Probes

best of the best

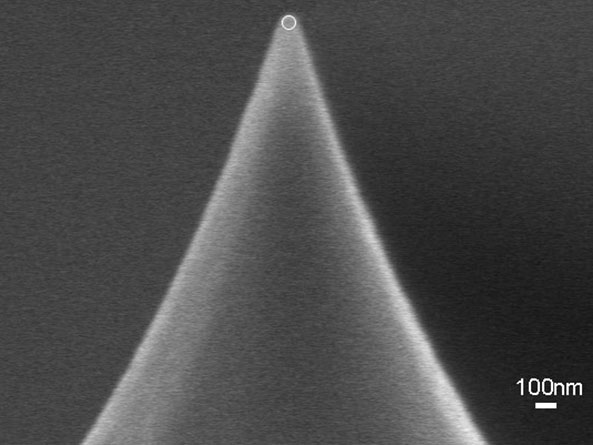

qp-BioAC

uniqprobe™ - uniform quality SPM probe for non-contact/tapping mode/contact mode with 3 different AFM cantilevers

Coating: Reflective Gold
Tip Shape: Circular symmetric

AFM Cantilevers: 3

1

2

3

F

90 kHz

50 kHz

30 kHz

C

0.3 N/m

0.1 N/m

0.06 N/m

L

40 µm

60 µm

80 µm

PPP-FMAuD

Gold Coated Force Modulation AFM Probe

Coating: Reflective Gold
Tip Shape: Standard

AFM Cantilever:

F

75 kHz

C

2.8 N/m

L

225 µm

ARROW-UHFAuD

Ultra High Frequency AFM Probe with Tip at the Very End of the Cantilever

Coating: Reflective Gold
Tip Shape: Arrow

AFM Cantilever:

F

2000 kHz

C

x

L

35 µm

USC-F1.2-k0.15

Ultra-Short Cantilever (USC) mainly dedicated to High-Speed AFM applications in liquid

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

1200 kHz

C

0.15 N/m

L

7 µm

HQ:NSC14/Cr-Au BS

Gold Coated Soft Tapping Mode AFM Probe

Coating: Reflective Gold
Tip Shape: Rotated

AFM Cantilever:

F

160 kHz

C

5 N/m

L

125 µm

best of the best

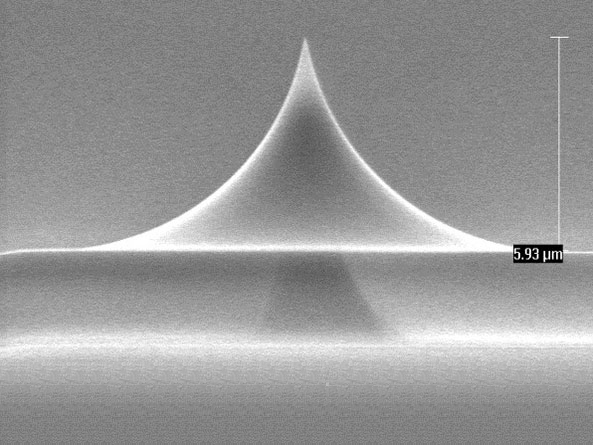

qp-fast

uniqprobe™ for Soft/Standard/Fast Tapping/Dynamic AFM imaging

Coating: Reflective Gold
Tip Shape: Circular symmetric

AFM Cantilevers: 3

1

2

3

F

800 kHz

420 kHz

250 kHz

C

80 N/m

30 N/m

15 N/m

L

40 µm

60 µm

80 µm

top value

HQ:NSC18/Cr-Au BS

Gold Coated Force Modulation AFM Probe

Coating: Reflective Gold
Tip Shape: Rotated

AFM Cantilever:

F

75 kHz

C

2.8 N/m

L

225 µm

The Standard SiNi probe

PNP-TR

Silicon Nitride AFM Probe

Coating: Reflective Gold
Tip Shape: Pyramid

AFM Cantilevers: 2

1

2

F

67 kHz

17 kHz

C

0.32 N/m

0.08 N/m

L

100 µm

200 µm

New

biotool cell

EBD carbon whisker with 25 nm radius on soft AFM cantilever

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

50 kHz

C

0.1 N/m

L

60 µm

qp-BioT

uniqprobe™ - uniform quality SPM probe for non-contact/tapping mode/contact mode with 2 different triangular AFM cantilevers

Coating: Reflective Gold
Tip Shape: Circular symmetric

AFM Cantilevers: 2

1

2

F

50 kHz

20 kHz

C

0.3 N/m

0.08 N/m

L

100 µm

200 µm

best bang for your buck

Multi75GD-G

Gold Coated Force Modulation AFM Probe

Coating: Reflective Gold
Tip Shape: Rotated

AFM Cantilever:

F

75 kHz

C

3 N/m

L

225 µm

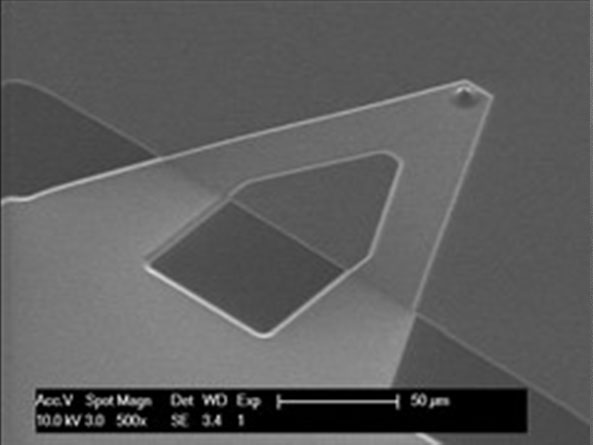

qp-HBC

uniqprobe™ - HeartBeat Cantilever for ScanAsyst®** and Peak Force Tapping™**

Coating: Reflective Aluminum
Tip Shape: Circular symmetric

AFM Cantilever:

F

60 kHz

C

0.5 N/m

L

115 µm

New

qp-BioAC-CI

uniqprobe™ BioAC with Rounded AFM Tips for Cell Imaging

Coating: Reflective Gold
Tip Shape: Circular symmetric

AFM Cantilevers: 3

1

2

3

F

90 kHz

50 kHz

30 kHz

C

0.3 N/m

0.1 N/m

0.06 N/m

L

40 µm

60 µm

80 µm

USC-F0.3-k0.3

Ultra-Short Cantilever (USC) mainly dedicated to High-Speed AFM applications in liquid

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

300 kHz

C

0.3 N/m

L

20 µm

PNP-DB

Silicon Nitride AFM Probe

Coating: Reflective Gold
Tip Shape: Pyramid

AFM Cantilevers: 2

1

2

F

67 kHz

17 kHz

C

0.48 N/m

0.06 N/m

L

100 µm

200 µm

HQ:NSC35/Cr-Au BS

AFM Probe with 3 Different Gold Coated Tapping Mode AFM Cantilevers

Coating: Reflective Gold
Tip Shape: Rotated

AFM Cantilevers: 3

1

2

3

F

205 kHz

300 kHz

150 kHz

C

8.9 N/m

16 N/m

5.4 N/m

L

110 µm

90 µm

130 µm

HQ:NSC36/Cr-Au BS

AFM Probe with 3 Different Gold Coated Force Modulation Mode AFM Cantilevers

Coating: Reflective Gold
Tip Shape: Rotated

AFM Cantilevers: 3

1

2

3

F

90 kHz

130 kHz

65 kHz

C

1 N/m

2 N/m

0.6 N/m

L

110 µm

90 µm

130 µm

top value

240AC-NG

Gold Coated Force Modulation AFM Probe with AFM Tip at the Very End of the AFM Cantilever

Coating: Reflective Gold
Tip Shape: Optimized Positioning

AFM Cantilever:

F

70 kHz

C

2 N/m

L

240 µm

New

biotool cell XXL

Extralong 15 um EBD carbon whisker with 25 nm radius on soft AFM cantilever

Coating: Reflective Gold
Tip Shape: EBD,Cone Shaped

AFM Cantilever:

F

50 kHz

C

0.1 N/m

L

60 µm

ATEC-FMAu

Gold Coated Force Modulation AFM Probe with REAL Tip Visibility

Coating: Gold Overall
Tip Shape: Visible

AFM Cantilever:

F

85 kHz

C

2.8 N/m

L

240 µm
