Electron Beam Deposited AFM Tips

EBD-NCH

Universal EBD AFM whisker for enhanced resolution, imaging stability and AFM tip lifetime

Coating: none
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm

USC-F1.2-k0.15

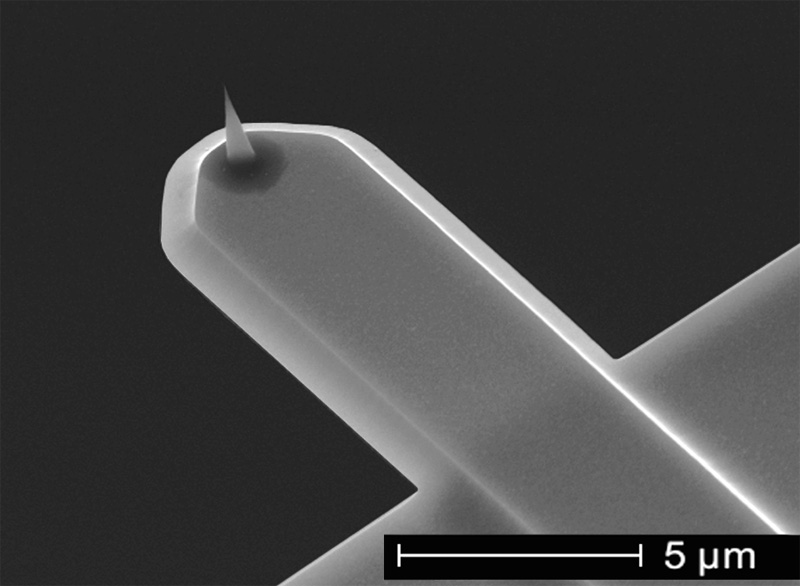

Ultra-Short Cantilever (USC) mainly dedicated to High-Speed AFM applications in liquid

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

1200 kHz

C

0.15 N/m

L

7 µm

New

biotool cell

EBD carbon whisker with 25 nm radius on soft AFM cantilever

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

50 kHz

C

0.1 N/m

L

60 µm

USC-F0.3-k0.3

Ultra-Short Cantilever (USC) mainly dedicated to High-Speed AFM applications in liquid

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

300 kHz

C

0.3 N/m

L

20 µm

USC-F5-k30

Ultra-Short Cantilever (USC) mainly dedicated to dynamic High-Speed AFM applications in air

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

5000 kHz

C

30 N/m

L

10 µm

New

biotool high resolution

EBD carbon AFM whisker with 2 nm radius on soft AFM cantilever

Coating: Reflective Gold
Tip Shape: EBD,Cone Shaped,Supersharp

AFM Cantilever:

F

50 kHz

C

0.1 N/m

L

60 µm

New

biotool cell XXL

Extralong 15 um EBD carbon whisker with 25 nm radius on soft AFM cantilever

Coating: Reflective Gold
Tip Shape: EBD,Cone Shaped

AFM Cantilever:

F

50 kHz

C

0.1 N/m

L

60 µm

SuperSharp Enhanced

Ultrasharp EBD AFM whisker for high-resolution, non-contact AFM

Coating: Reflective Aluminum
Tip Shape: Cone Shaped,Supersharp,EBD

AFM Cantilever:

F

320 kHz

C

40 N/m

L

120 µm

SuperSharpStandard-NCH

SuperSharp diamond-like EBD whisker for non-contact AFM

Coating: Reflective Aluminum
Tip Shape: Cone Shaped,Supersharp,EBD

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm

SuperSharp Enhanced-soft

Ultrasharp EBD AFM whisker for high-resolution, soft tapping AFM

Coating: Reflective Aluminum
Tip Shape: Cone Shaped,Supersharp,EBD

AFM Cantilever:

F

75 kHz

C

2.8 N/m

L

225 µm

USC-F2-k3

Ultra-Short Cantilever (USC) mainly dedicated to dynamic High-Speed AFM applications in air

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

2000 kHz

C

3 N/m

L

10 µm

USC-F1.2-k7.3

Ultra-Short Cantilever (USC) mainly dedicated to dynamic High-Speed AFM applications in air

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

1200 kHz

C

7.3 N/m

L

20 µm

EBD-AR15T

High-aspect ratio, tilt compensated EBD AFM whisker for automated non-contact AFM

Coating: none
Tip Shape: High-Aspect-Ratio,Cone Shaped,EBD

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm

USC-F1.5-k0.6

Ultra-Short Cantilever (USC) mainly dedicated to High-Speed AFM applications in liquid

Coating: Reflective Gold
Tip Shape: Cone Shaped,EBD

AFM Cantilever:

F

1500 kHz

C

0.6 N/m

L

7 µm

M-CIS

EBD AFM whisker for non-contact AFM microlens contact image sensor (CIS) inspection

Coating: Reflective Aluminum
Tip Shape: High-Aspect-Ratio,Cone Shaped,EBD

AFM Cantilever:

F

320 kHz

C

40 N/m

L

120 µm

EBD-HAR

Universal high-aspect ratio EBD AFM whisker for enhanced resolution, imaging stability and AFM tip lifetime

Coating: none
Tip Shape: High-Aspect-Ratio,Cone Shaped,EBD

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm

EBD-AR20T

High-aspect ratio, tilt compensated EBD AFM whisker for automated non-contact AFM

Coating: none
Tip Shape: High-Aspect-Ratio,Cone Shaped,EBD

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm

M1-HAR

High-aspect ratio, tilt compensated EBD AFM whisker for automated non-contact AFM

Coating: none
Tip Shape: High-Aspect-Ratio,Cone Shaped,EBD

AFM Cantilever:

F

320 kHz

C

40 N/m

L

120 µm

SuperSharpStandard-FM

SuperSharp diamond-like EBD AFM whisker for soft tapping AFM

Coating: Reflective Aluminum
Tip Shape: Cone Shaped,Supersharp,EBD

AFM Cantilever:

F

75 kHz

C

2.8 N/m

L

225 µm

New

biosphere B20-NCH

Pre-calibrated EBD nanoindentation AFM probe

Coating: Reflective Gold
Tip Shape: Sphere, Diamond-Like-Carbon
Sphere Diameter: 0.04 µm

AFM Cantilever:

F

330 kHz

C

40 N/m

L

125 µm
