Nanoindentation and Lithography AFM Probes

In addition to measuring sample surfaces, an AFM can be used to manipulate or to modify surfaces.

For nanotribology, nanofabrication, nanomachining, hardness measurements by nanoindentation, nanoindentation, nanolithography, and local surface elasticity and viscoelasticity mapping on solid surfaces, an extremely hard AFM tip and an AFM cantilever with a high force constant are required to achieve a high force load.

A hard AFM tip (Diamond, DLC coated, Platinum Silicide, Nitride, EBD) is necessary so that the AFM tip is not destroyed when penetrating the sample or its surface (oxide) and does not wear out too quickly during a dynamic measurement.

AFM tip shape and contact force determine the penetration depth and contact area in these methods or the structure width in nanolithography by scratching.

In addition to the hardness and shape of the AFM tip, the orientation is also important. A disadvantage of AFM based nanoindentation is the non-perpendicular indenter (probe) approach. Quantitative nanoindentation requires the probe to approach the sample perpendicularly, which is not the case normally for AFMs due to their optical deflection measuring system for the AFM cantilever height movement detection. This problem can be overcome with tip-tilt compensation AFM probes.

The narrower an AFM tip is, the deeper its penetration depth can be, but AFM tips are not infinitely sharp. Therefore, every measurement is a convolution of the actual surface topography and the shape of the AFM tip. A common approach to simplify the determination of AFM tip radius for nanoindentation is to use rounded AFM tips to obtain defined indentation structures for quantitative results and for tribological measurements. The radii of these AFM tips can be easily characterized, as can the mechanical behavior of the cantilever.

Knowledge of the AFM tip shape and behavior of the AFM cantilever also enables data analysis of nanoindentation measurements by modeling the indentation according to the Hertzian model. Oxidic rounded silicon AFM tips, EBD spheres and colloidal AFM probes are recommended for this purpose.

The same AFM tip shapes but with soft AFM cantilevers can be used for local surface elasticity and viscoelasticity mapping on biological samples and friction measurements.

If the AFM tip is also conductive, resistance measurements (SSRM) can be carried out at the same time or modifications to the surface can be made by nanooxidation.

Soft sharp AFM tips and soft AFM cantilevers can be used for mechanically induced nanografting on polymer monolayers or surface-initiated polymerization (SIP) and constructive reversible nanolithography on Self-Assembled-Monolayers (SAM).

For performing microscale scratching and microscale wear applications with AFM, i.e. measurements on samples with extreme height differences in roughness, special AFM probes, the so-called Extra Tall AFM Tips (NanoSensors Special Developments List or SDL), can be used. These AFM tips have with a total height of up to 60 µm compared to 15 µm for the regular AFM tips.

Sort by:
62 results
best of the best
DT-NCHR
DT-NCHR
Diamond Coated Tapping Mode AFM Probe
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
400 kHz
C
80 N/m
L
125 µm
DT-FMR
DT-FMR
Diamond Coated Force Modulation AFM Probe
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
105 kHz
C
6.2 N/m
L
225 µm
DT-NCLR
DT-NCLR
Diamond Coated Tapping Mode AFM Probe with Long AFM Cantilever
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
210 kHz
C
72 N/m
L
225 µm
the industry standard
NW-DT-NCHR
NW-DT-NCHR
Diamond Coated Tapping Mode AFM Probe
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
400 kHz
C
80 N/m
L
125 µm
NW-DT-FMR
NW-DT-FMR
Diamond Coated Force Modulation AFM Probe
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
105 kHz
C
6.2 N/m
L
225 µm
NW-DT-NCLR
NW-DT-NCLR
Diamond Coated Tapping Mode AFM Probe with Long Cantilever
Coating: Diamond
Tip Shape: Standard
AFM Cantilever:
F
210 kHz
C
72 N/m
L
225 µm
top value
HQ:NSC15/Hard/Al BS
HQ:NSC15/Hard/Al BS
Long Scanning, DLC Hardened Tapping Mode AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
325 kHz
C
40 N/m
L
125 µm
HQ:NSC14/Hard/Al BS
HQ:NSC14/Hard/Al BS
Long Scanning, DLC Hardened, Soft Tapping Mode AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
160 kHz
C
5 N/m
L
125 µm
HQ:NSC35/Hard/Al BS
HQ:NSC35/Hard/Al BS
AFM Probe with 3 Different Long Scanning, DLC Hardened Tapping Mode AFM Cantilevers
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilevers: 3
1
2
3
F
205 kHz
300 kHz
150 kHz
C
8.9 N/m
16 N/m
5.4 N/m
L
110 µm
90 µm
130 µm
best bang for your buck

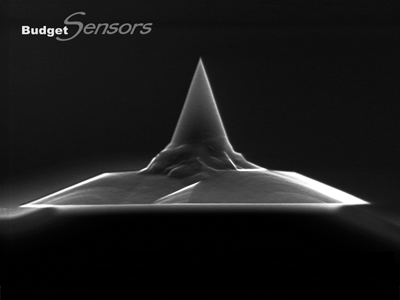

Tap300DLC
Tap300DLC
Diamond-Like-Carbon Coated Tapping Mode AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
300 kHz
C
40 N/m
L
125 µm
Multi75DLC
Multi75DLC
Diamond-Like-Carbon Coated Force Modulation AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
75 kHz
C
3 N/m
L
225 µm
best bang for your buck
All-In-One-DD
All-In-One-DD
Diamond Coated, Conductive AFM Probe with 4 Different AFM Cantilevers
Coating: Conductive Diamond
Tip Shape: Rotated
AFM Cantilevers: 4
1
2
3
4
F
19 kHz
110 kHz
200 kHz
450 kHz
C
0.5 N/m
6.5 N/m
18 N/m
100 N/m
L
500 µm
210 µm
150 µm
100 µm
HQ:NSC16/Hard/Al BS
HQ:NSC16/Hard/Al BS
Long Scanning, DLC Hardened Tapping Mode AFM Probe with Long AFM Cantilever
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
190 kHz
C
45 N/m
L
225 µm
HQ:NSC36/Hard/Al BS
HQ:NSC36/Hard/Al BS
AFM Probe with 3 Different Long Scanning, DLC Hardened Force Modulation Mode AFM Cantilevers
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilevers: 3
1
2
3
F
90 kHz
130 kHz
65 kHz
C
1 N/m
2 N/m
0.6 N/m
L
110 µm
90 µm
130 µm
Mix and Match Box
Mix and Match Box
Mixed box: up to 400 MikroMasch AFM probes
Coating: various
Tip Shape: various
HQ:NSC18/Hard/Al BS
HQ:NSC18/Hard/Al BS
Long Scanning, DLC Hardened Force Modulation AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
75 kHz
C
2.8 N/m
L
225 µm
HQ:XSC11/Hard/Al BS
HQ:XSC11/Hard/Al BS
AFM Probe with 4 Different Long Scanning, DLC Hardened Cantilevers for Various Applications
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilevers: 4
1
2
3
4
F
15 kHz
80 kHz
155 kHz
350 kHz
C
0.2 N/m
2.7 N/m
7 N/m
42 N/m
L
500 µm
210 µm
150 µm
100 µm
Tap150DLC
Tap150DLC
Diamond-Like-Carbon Coated Soft Tapping Mode AFM Probe
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
150 kHz
C
5 N/m
L
125 µm
Tap190DLC
Tap190DLC
Diamond-Like-Carbon Coated Tapping Mode AFM Probe with Long AFM Cantilever
Coating: Hard Diamond-Like-Carbon
Tip Shape: Rotated
AFM Cantilever:
F
190 kHz
C
48 N/m
L
225 µm
BudgetComboBox
BudgetComboBox
Mixed Box with 50 BudgetSensors AFM probes of your choice
Coating: various
Tip Shape: various
4
